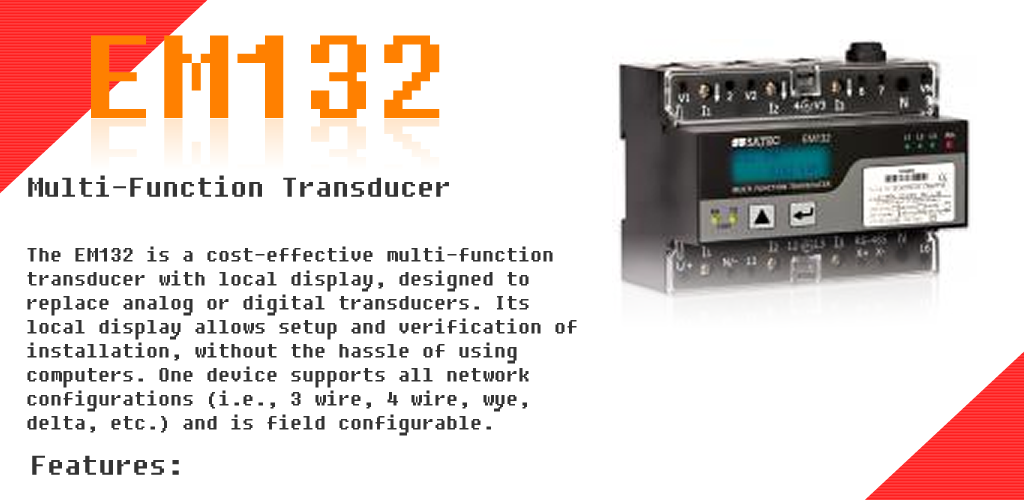

Multi-Functional 3-Phase Power Meter

  • Voltage, current (including neutral current), power, energy, power factor, frequency, voltage/current unbalance
  • Current range up to 200% (120% for 100A model)

Revenue Meter

  • Exceeds accuracy class 0.5S

Real Time Clock

  • Built-in clock and calendar functions
  • 2 year battery backup

Alarm and Control Functions

  • 16 programmable set points
  • 4 counters

Power Supply

  • Self powered plus auxiliary multi-purpose AC/DC power supply (85-265V AC, 88-290V DC)
  • Special versions (12, 24-48V DC)

Communication protocols

  • Protocols
  • Modbus RTU
  • ASCII
  • DNP 3.0
  • Modbus/TCP
  • DNP3/TCP

Mounting

  • DIN Rail sealable connection

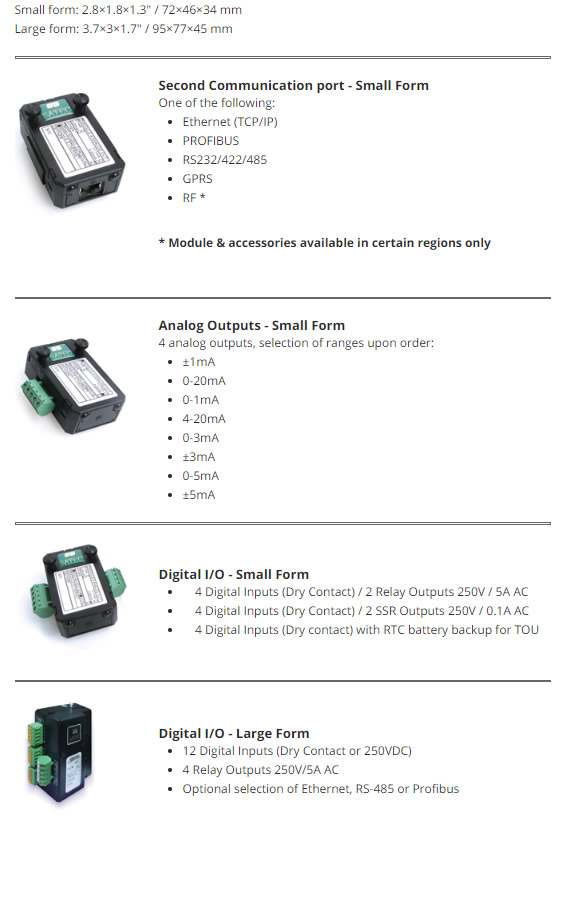

Plug-In Modules
